Rugged Wireless Receivers for Industrial Equipment Control
RANGE
600 – 5000 foot
SPECIALTY
High current models
RELAYS
Up to 16
FREQUENCY
900 MHz or
2.4 GHz
POWER
AC or DC

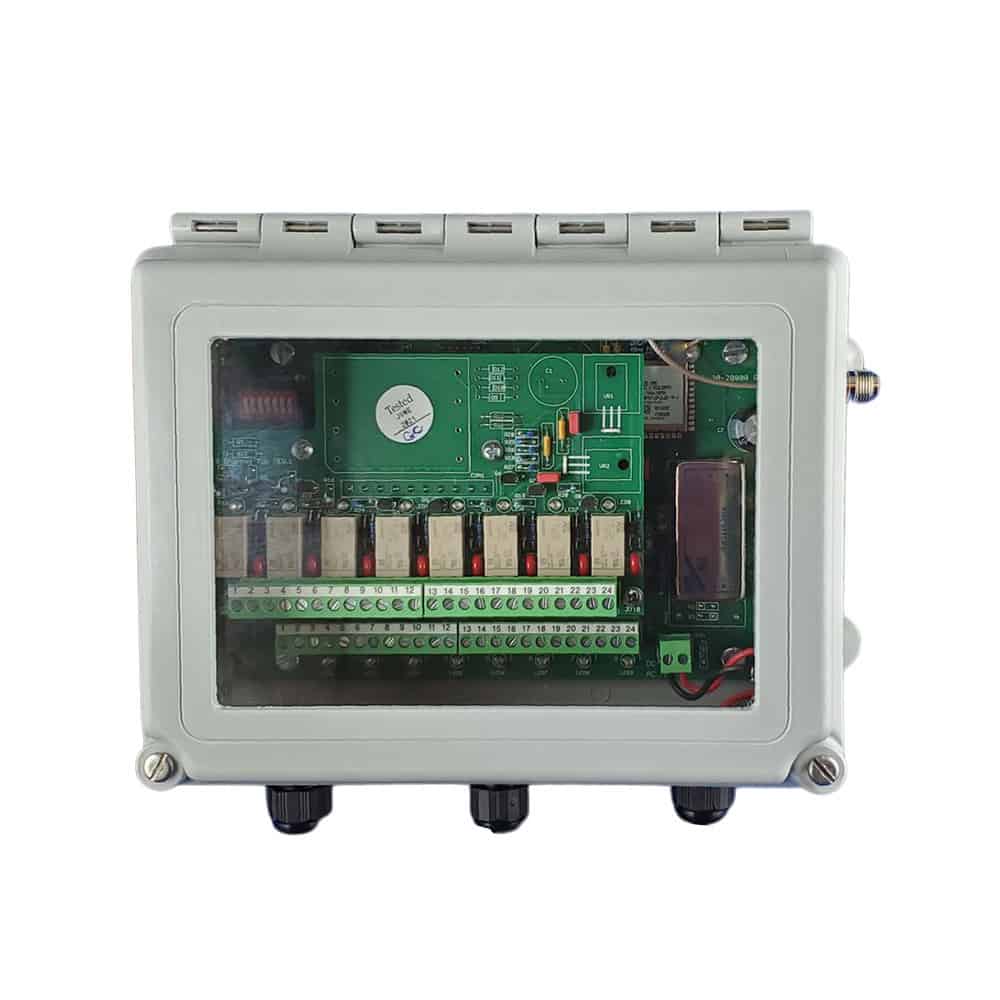

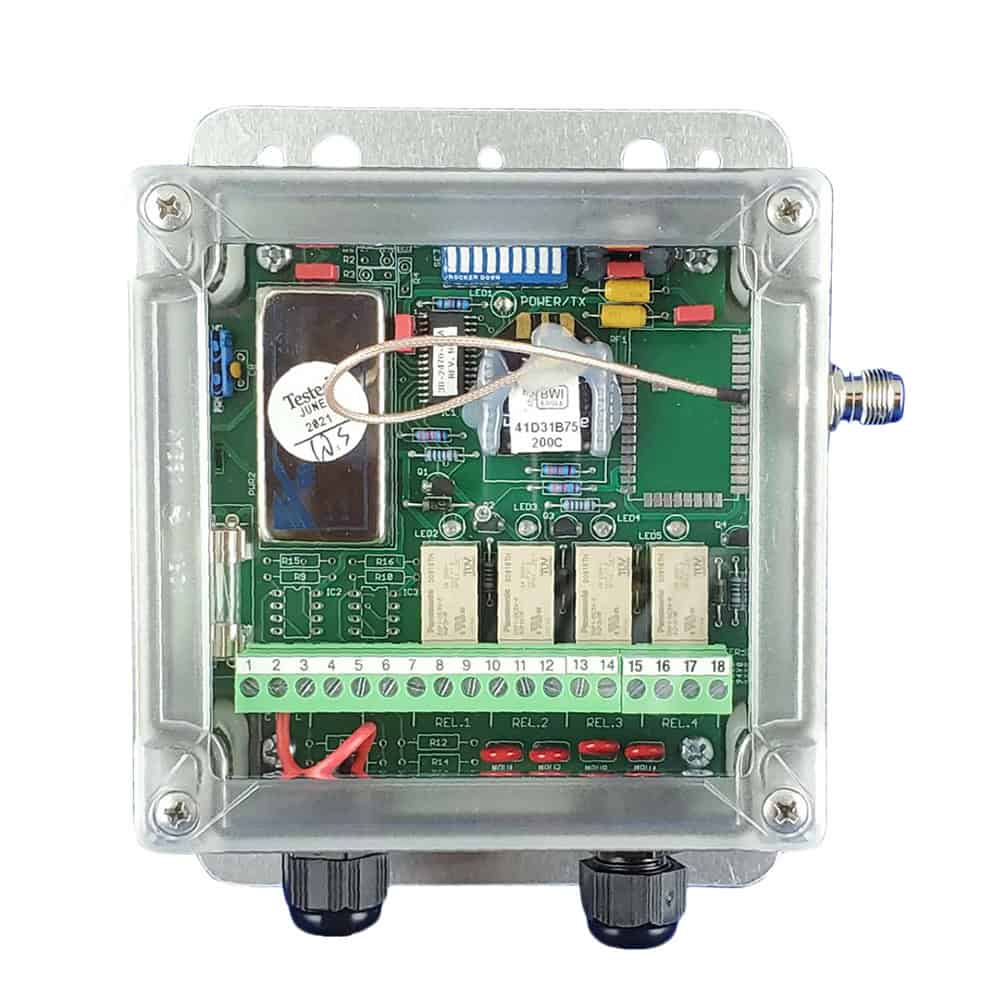

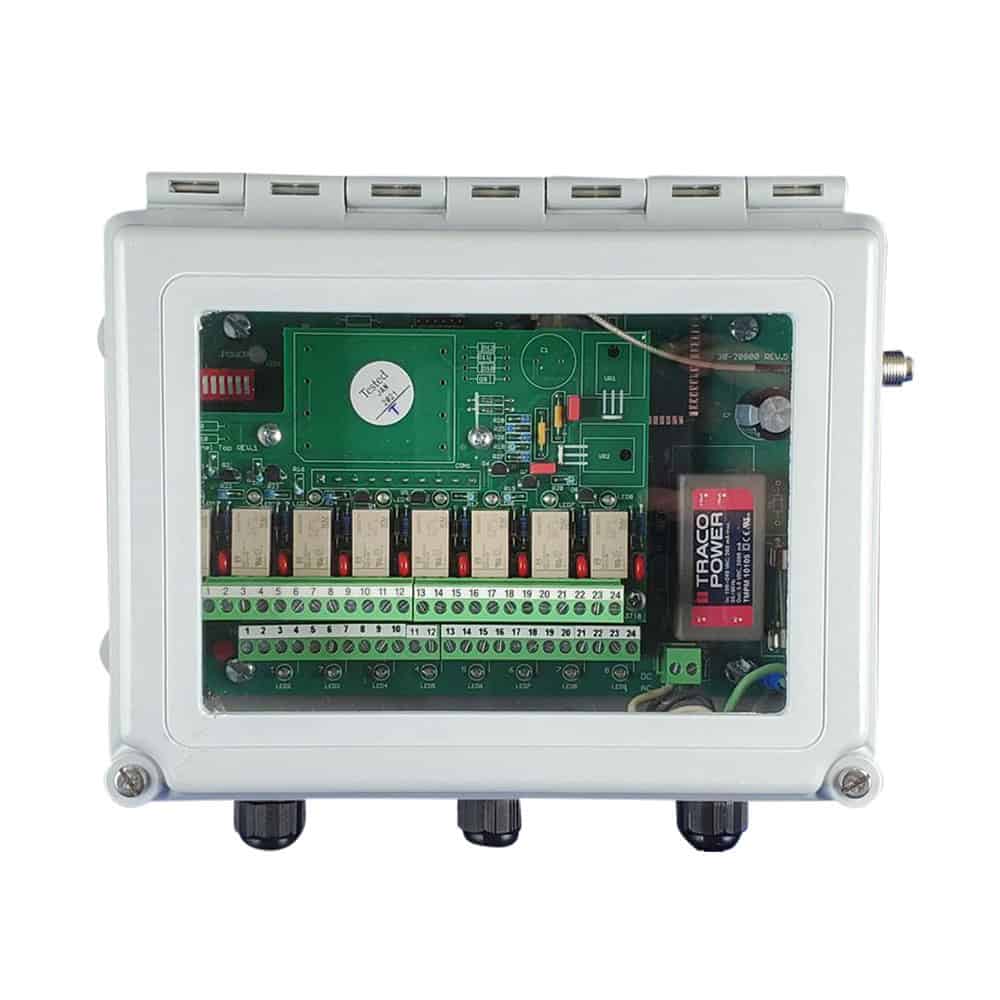

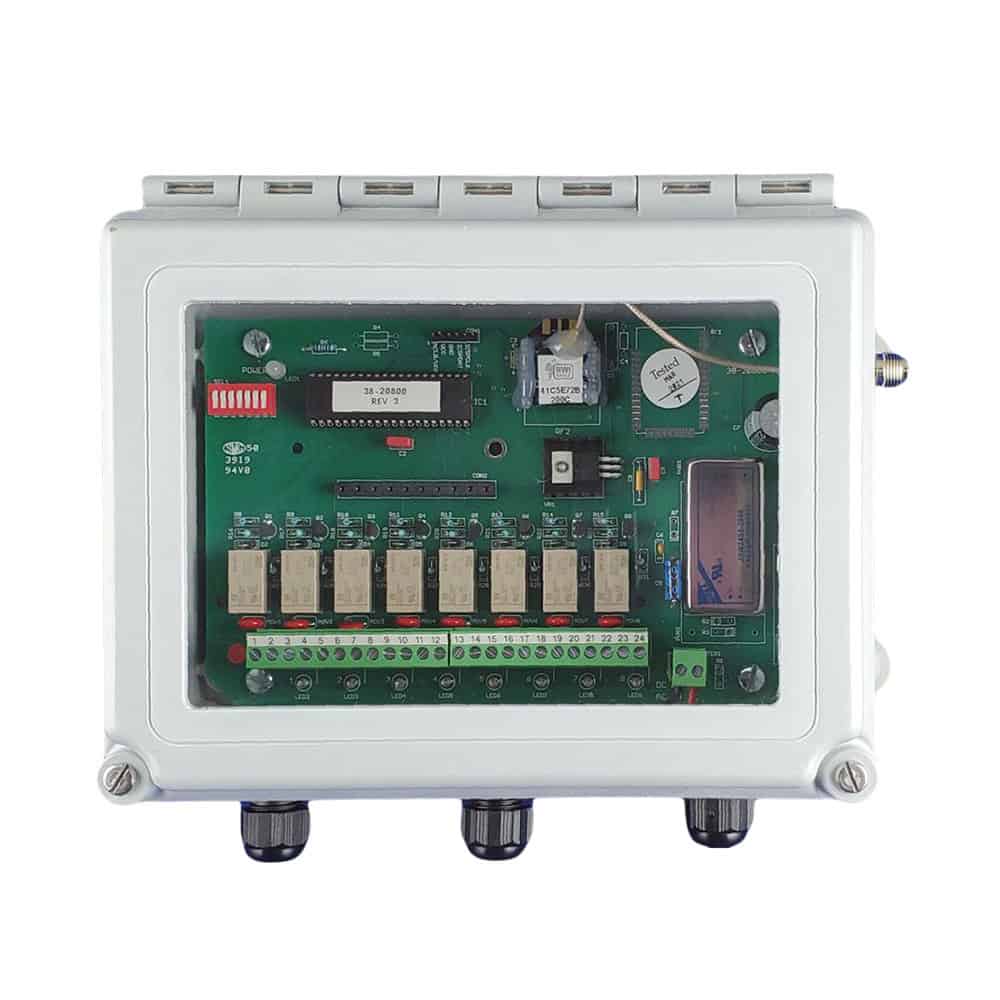

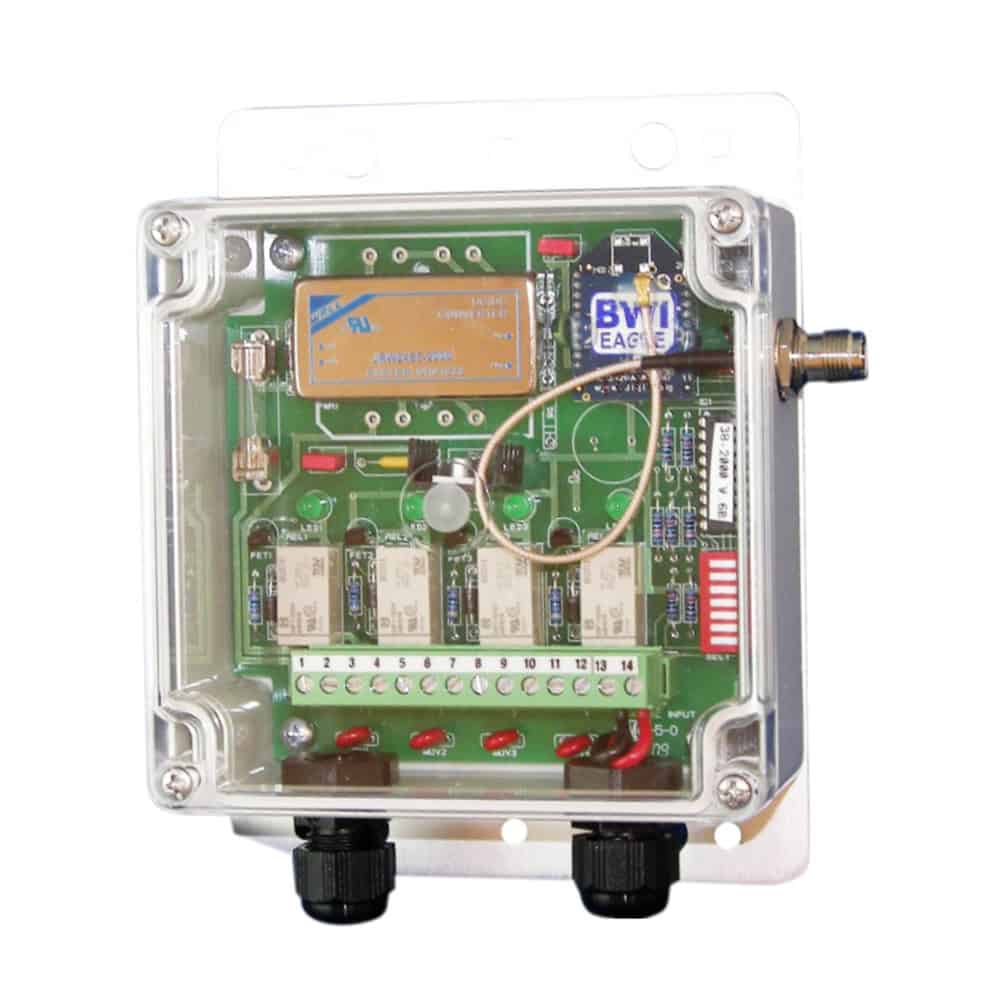

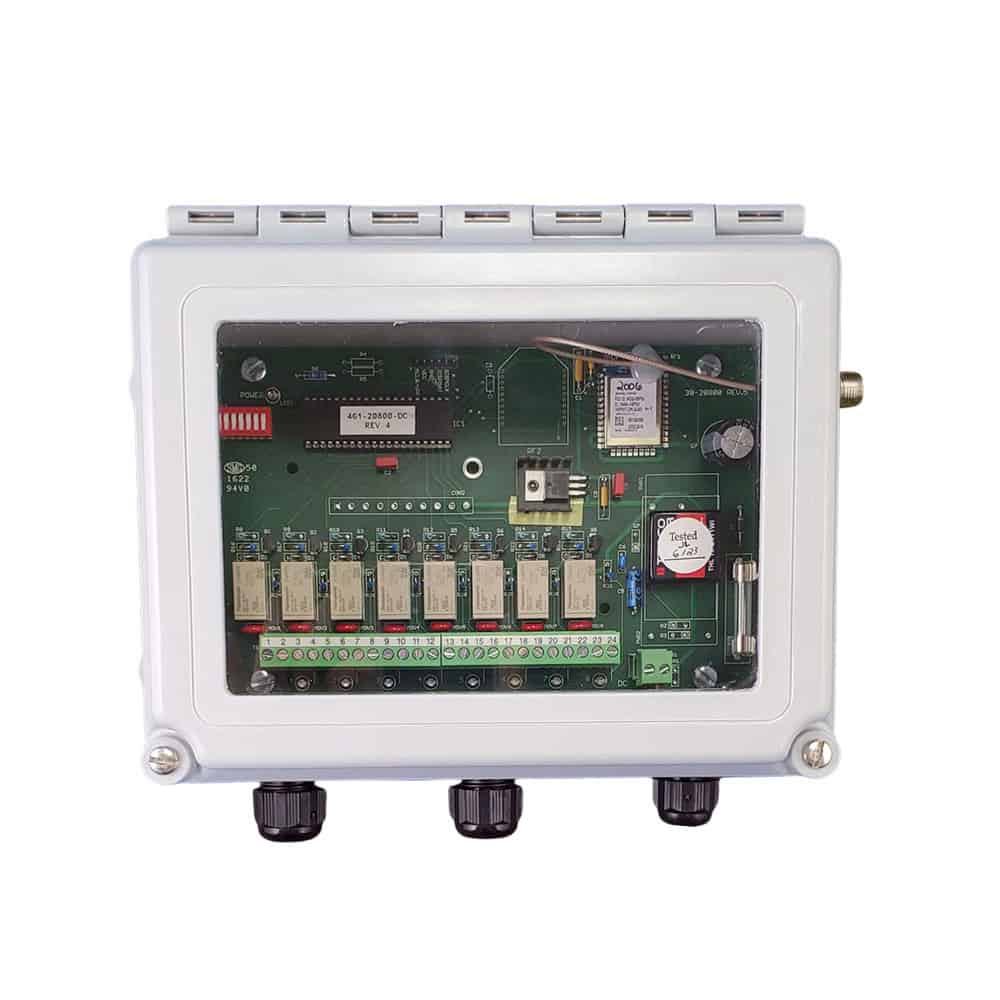

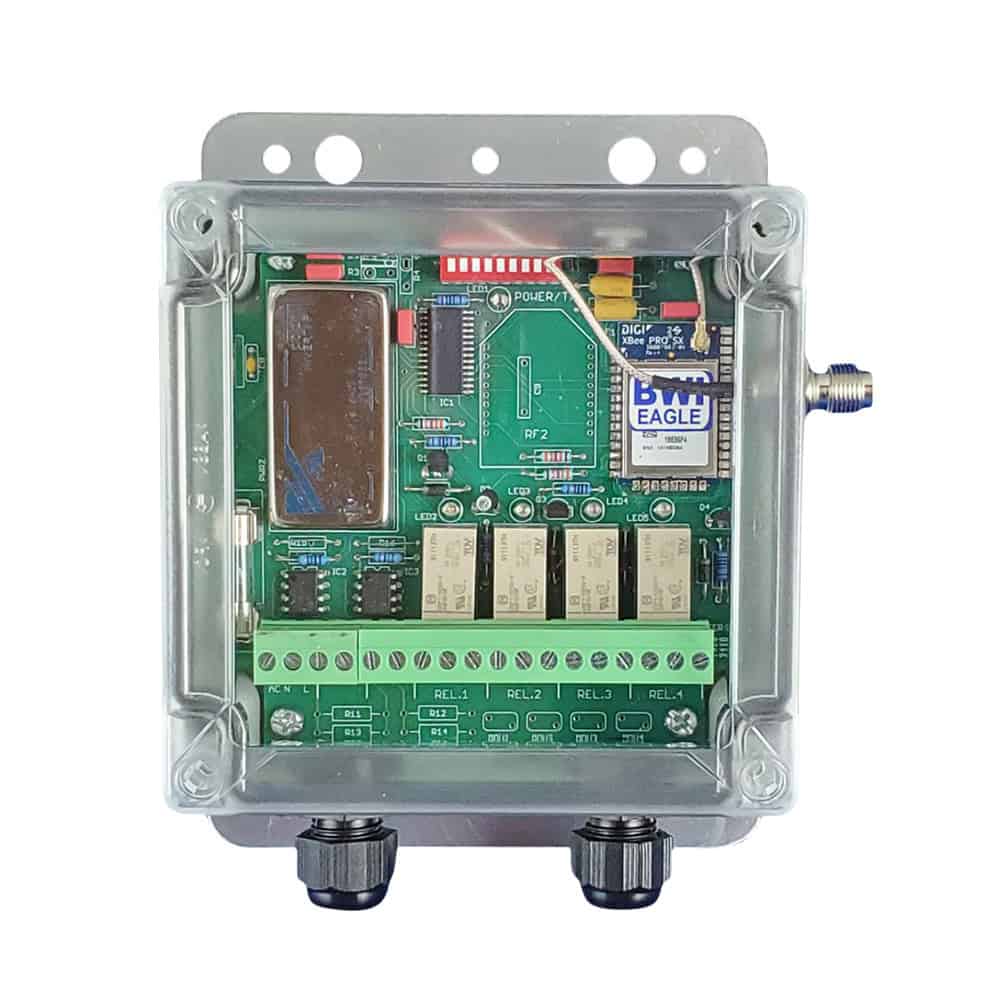

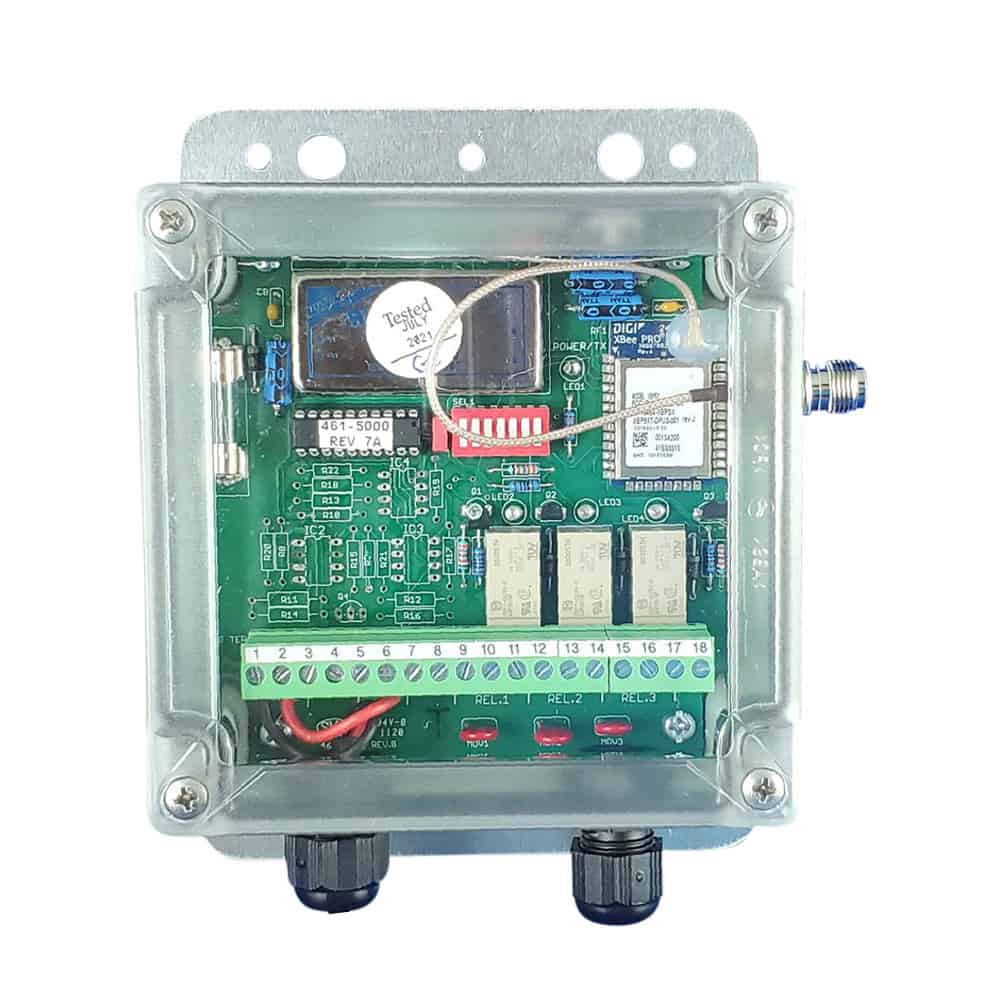

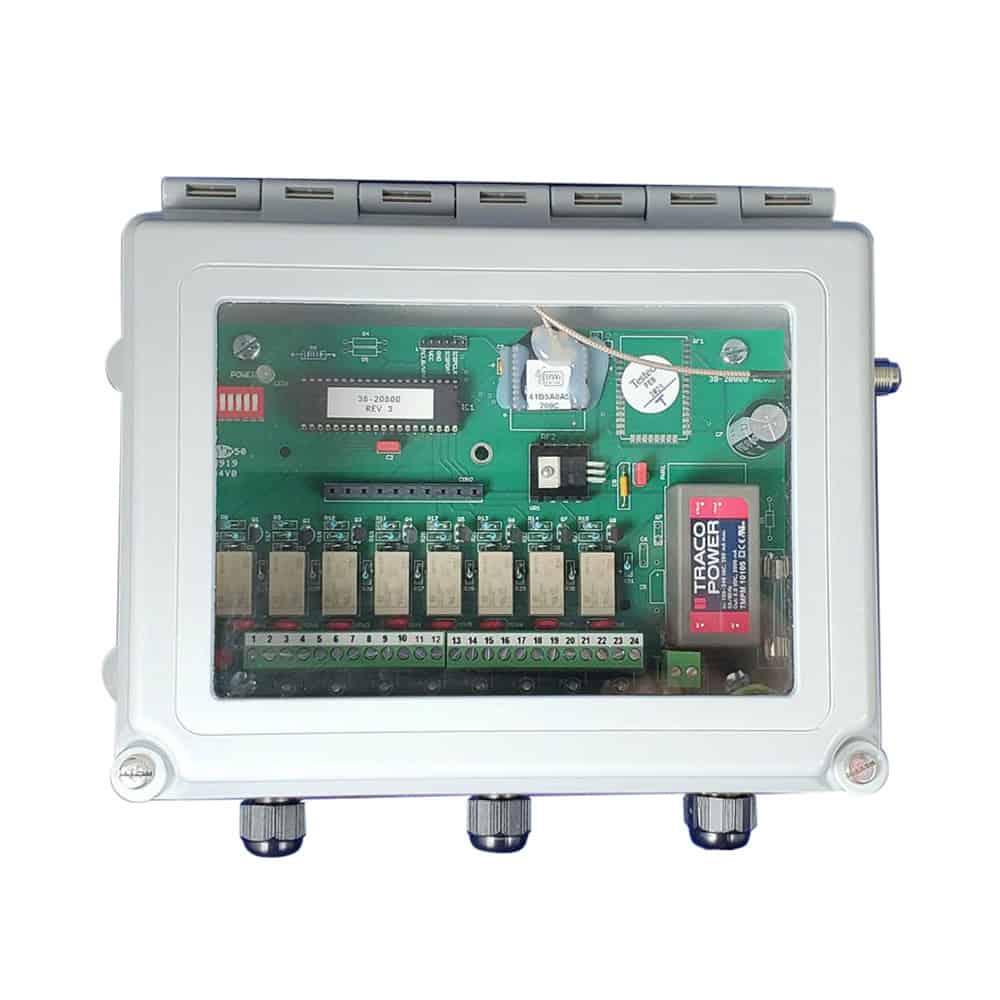

BWI Eagle Receivers provide an industrial remote control system with dry contact relay outputs to control equipment wirelessly. These single or multi-channel units receive signals from compatible handheld, contact input or voltage input transmitters at distances up to 5,000 feet, with extended range up to 10 miles, depending on the model.
Each receiver includes SPDT dry contact relay outputs capable of switching AC or DC voltages up to five amps. Units are available with one, three, four, eight or 16 independent relays.
Standard relay operation is maintained momentary, meaning the relay remains energized while the button is pressed. However, units can be switched to toggle latching relay mode and custom programming options allow for additional relay operations.
BWI Eagle Receivers provide a cost-effective solution in applications where electrical cables are impractical, impossible or too expensive. To see product options, view the Receiver Product Guide.
-
- Standard operating range up to 5,000 feet.
- Extended range up to 10 miles with high-gain antennas and repeaters.
- One, three, four, eight or 16 independent relays available.
- 900 MHz or 2.4 GHz frequency bands.
- Eight independent network frequencies for reliable communication.
- AC and DC-powered models.
- Custom programming available for a variety of relay operations.
- Proudly manufactured in the USA.
- Read the BWI Eagle FAQs.
- View the Receiver Product Guide.
Features
Receivers features overview
| Feature | Info |
|---|---|
| Frequency | 900 MHz or 2.4 GHz spread spectrum |
| Relays | One, three, four, eight or 16 independent relays (varies by model) |
| Relay Contacts | SPDT 5 amp @ 120VAC or 30VDC |
| Relay Operation Modes | Maintained momentary and toggle latching (standard) |
| RF Networks | Eight independent network frequencies |
| Operating Range |
|
| Power Options | AC and DC-powered models |
| Operating Temperature | -40° F to +185° F (-40° C to +85° C) |
| Housing & Protection | Varies by model:
|
| Custom Hardware | Lid-mounted audible and visual indicators (select models) |
| Custom Programming | Additional relay operations available, including latching, dual activation and on/off delay timers |
| Specialty Receivers | High-current models available |
