Two-Way Wireless Communication for Real-Time Control and Feedback
RANGE
600 – 5000 foot
ENCLOSURE
IP66-rated
CHANNELS
Up to 8
FREQUENCY
900 MHz or
2.4 GHz
POWER
AC or DC

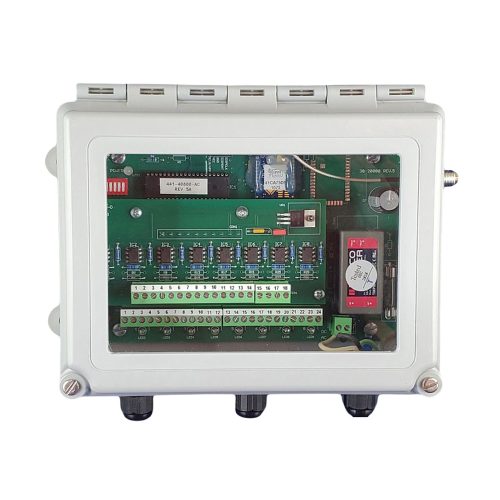

BWI Eagle Transceivers combine the functionality of a transmitter and receiver, providing real-time status updates of remote operations. Each industrial remote control unit provides a standard operating range up to 5,000 feet with extended range up to 10 miles. Transceivers are equipped with input and output channels, allowing them to transmit control signals and receive confirmation that operations were performed successfully.
Depending on the model, transceivers can communicate with other transceivers at distances up to 10 miles. Multiple transceivers can be combined to create a customized system tailored to specific applications. Available models feature one, two, three, four or eight input and output channels for flexible remote operation.
The standard relay operation mode is maintained momentary, meaning the relay remains energized while the button is pressed. Units can also be configured for toggle latching or custom-programmed for other relay operations.
BWI Eagle Transceivers provide a cost-effective solution in applications where electrical cables are impractical, impossible or too expensive. To see product options, view the Transceiver Product Guide.
- Standard operating range up to 5,000 feet
- Extended range up to 10 miles with high-gain antennas and repeaters.
- One, two, three, four or eight input and output channels.
- 900 MHz or 2.4 GHz frequency bands.
- Eight independent network frequencies for reliable communication.
- AC and DC-powered models.
- Custom programming available for a variety of relay operations.
- Proudly manufactured in the USA.
- Read the BWI Eagle FAQs.
- View the Transceiver Product Guide.
Features
Transceivers features overview
| Feature | Info |
|---|---|
| Frequency | 900 MHz or 2.4 GHz spread spectrum |
| Input & Output Channels | One, two, three, four or eight input and output channels (varies by model) |
| Relay Contacts | SPDT 5 amp @ 120VAC or 30VDC |
| Relay Operation Modes | Maintained momentary and toggle latching (standard) |
| Custom Programming | Additional relay operations available, including latching, dual activation and on/off delay timers |
| RF Networks | Eight independent network frequencies |
| RF Output Power | 1 watt, 250 mW or 60 mW (varies by model) |
| Operating Range |
|
| Operating Temperature | -40° F to +185° F (-40° C to +85° C) |
| Housing & Protection | Varies by model:
|
| Power Options | AC and DC-powered models |
| Custom Hardware Option | Lid-mounted pushbuttons, switches, audible and visual indicators can be added |
