Automatic Wireless Activation from Voltage Signals
RANGE
600 – 5000 foot
ENCLOSURE
IP66-rated
CHANNELS
Up to eight
FREQUENCY
900 MHz or
2.4 GHz
POWER
AC or DC

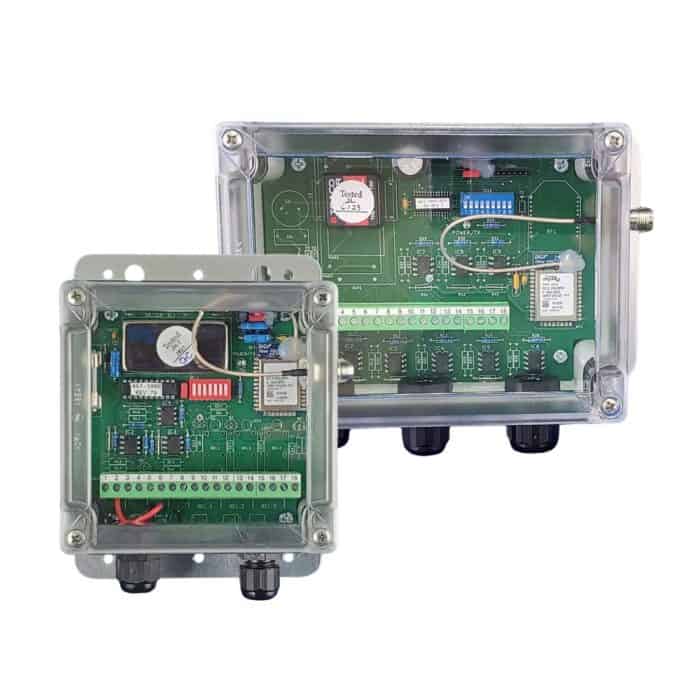

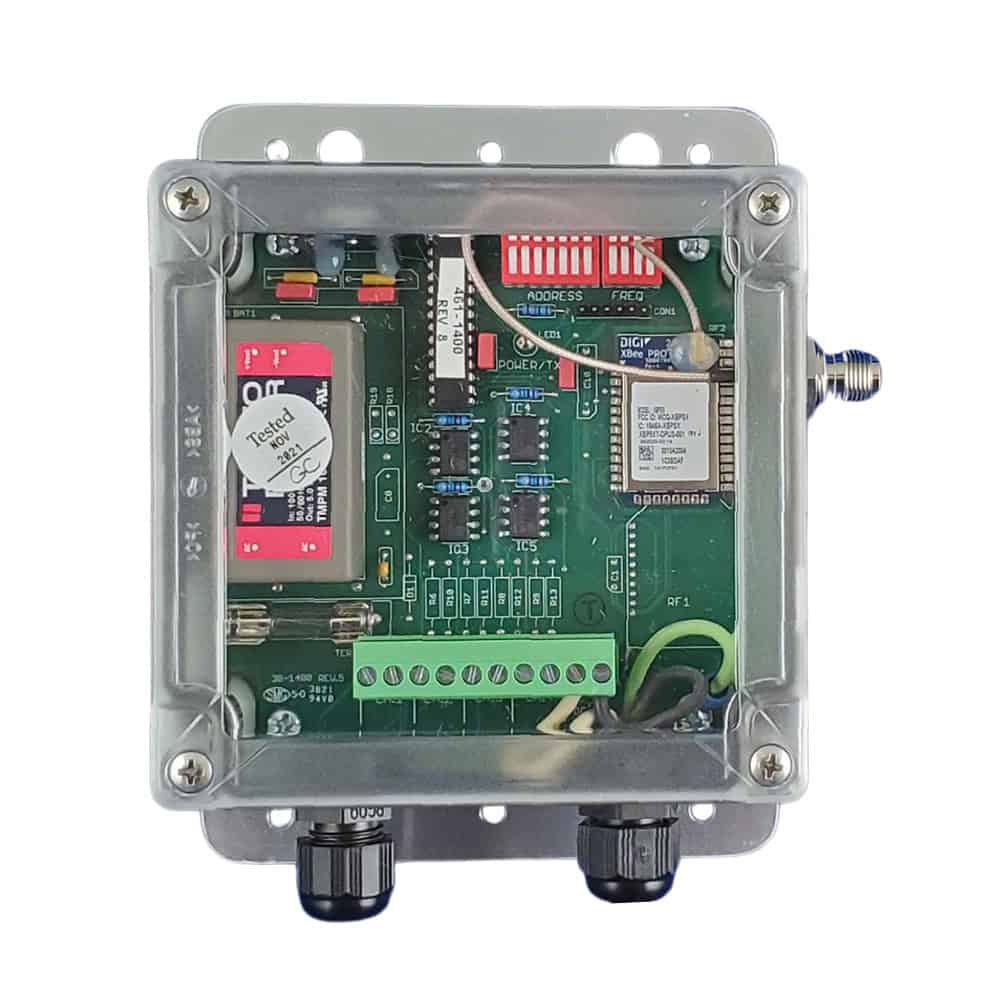

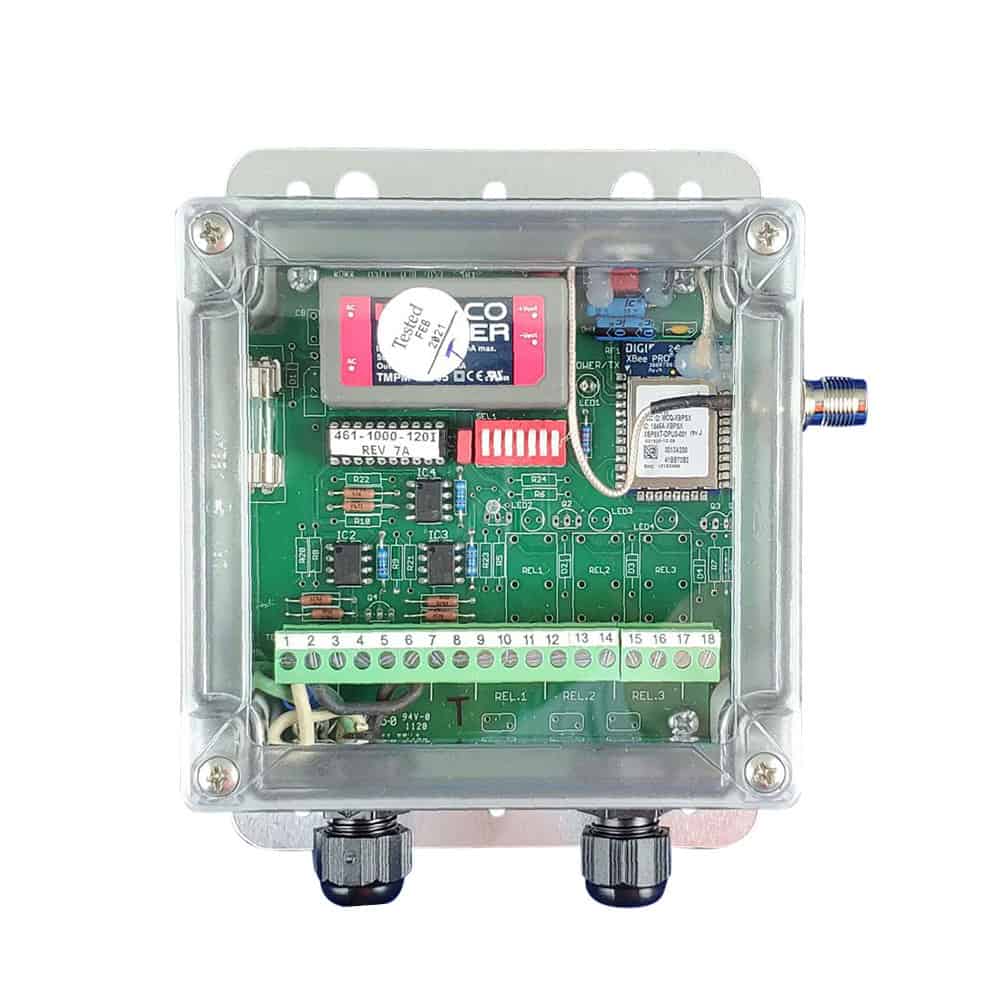

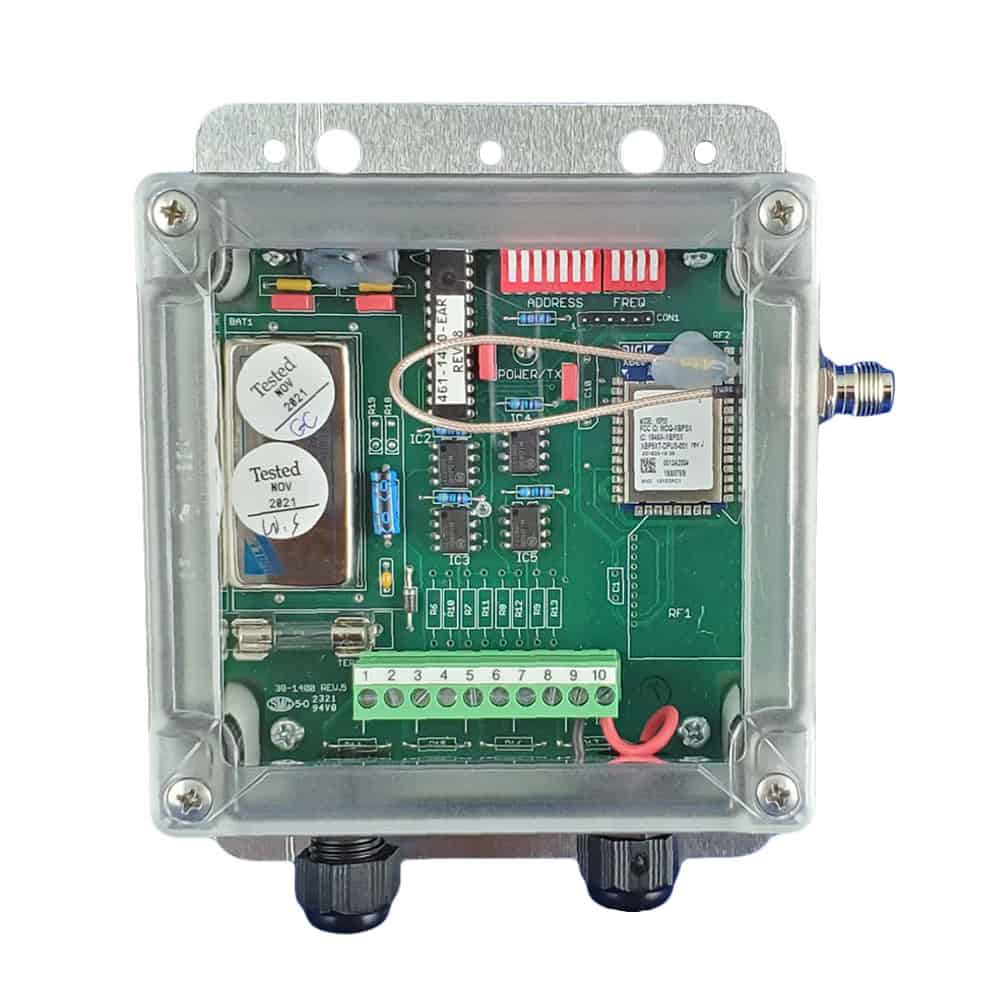

BWI Eagle Voltage Input Transmitters provide automatic control of remote equipment using voltage inputs from any external source. Depending on the model, these multi-channel industrial remote control units can operate one or more receivers at distances up to 5,000 feet or an extended range up to 10 miles. Each unit includes a terminal strip that accepts one or more 5-24VDC or 120VAC voltage inputs from external relays or switches.
Designed for applications requiring automatic activation, these stationary units trigger transmission when voltage is applied to the input. They are powered by 100- 250VAC or 9-36VDC, providing flexibility for various industrial environments.
BWI Eagle Voltage Input Transmitters offer a cost-effective solution where running electrical cables is impractical, impossible or too expensive.
To see product options, view the Voltage Input Transmitter Product Guide.
- Standard operating range up to 5,000 feet.

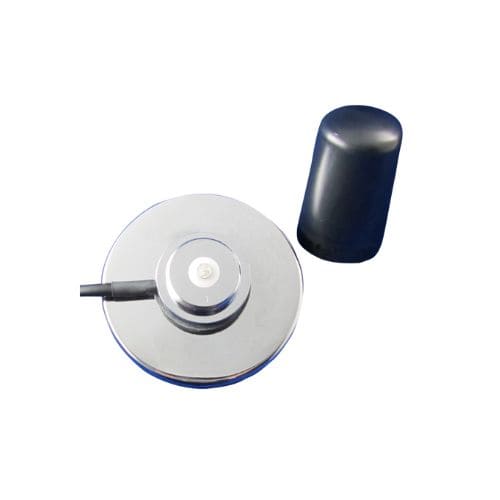

- Extended range up to 10 miles with high-gain antennas and repeaters.
- One, three, four or eight input channels available.
- 900 MHz or 2.4 GHz frequency bands.
- Eight independent network frequencies for reliable communication.
- Custom programming available for a variety of relay operations.
- Accepts AC or DC voltage inputs.
- AC or DC-powered models available.
- Can operate multiple receivers.
- Proudly manufactured in the USA.
- Read the BWI Eagle FAQs.
- View the Voltage Input Transmitter Product Guide.
Features
Voltage Input Transmitters features overview
| Feature | Details |
|---|---|
| Frequency | 900 MHz or 2.4 GHz spread spectrum |
| Input & Output Channels | One, three, four or eight input and output channels (varies by model) |
| Relay Contacts | SPDT 5 amp @ 120VAC or 30VDC |
| Relay Operation Modes | Maintained momentary and toggle latching (standard) |
| Custom Programming | Additional relay operations available, including latching, dual activation and on/off delay timers |
| RF Networks | Eight independent network frequencies |
| RF Output Power | 1 watt, 250 mW or 60 mW (varies by model) |
| Operating Range |
|
| Operating Temperature | -40° F to +185° F (-40° C to +85° C) |
| Housing & Protection | Varies by model:
|
| Power Options | AC and DC-powered models |
